1.Main Information:
G173HW01 V0 (Alias: G173HW01 V.0) is a 17.3" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 70°C , a storage temperature range of -30 ~ 75°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Glossy . Based on its features,this model be applied to Industrial etc.
2.AUO G173HW01 V0 Optical Details:
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 37/3 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance | Chromaticity | Wx:0.300; Wy:0.310 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 7525K | White Uniformity | 1.25/1.33 (Typ./Max.)(13 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G173HW01 V0 Mechanical Details:
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0663×0.1989 mm | Pixel Pitch(W×H) | 0.1989×0.1989 mm [127PPI] |
| Physical Size : | Active Viewing | 381.888(W)×214.812(H) mm | Overall Dim. | 403(W)×240(H) mm |
| Bezel Opening | 385.09(W)×218.01(H) mm | Overall Depth | 12.5±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | - |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass | 1.08Kgs (Typ.) | Surface | Glare (Haze 0%), Hard coating (3H) |
4.AUO G173HW01 V0 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Top side) |
| Exchange | Replaceable | Amount | - | Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14A-6P-1.25H | 1 pcs | 1.25 mm | 6 pins | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 0.99A (Typ.) | Input Voltage | 10.8/12.0/13.4V (Min./Typ./Max.) |
| Consumption | 12/15W (Typ./Max.) |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

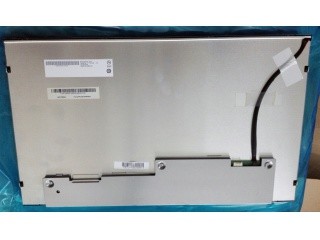

G173HW01 V0 LED Driver 17.3 Inch 1920*1080 400 cd/m² A-Si TFT LCD Panel Images
|
