27.0in RGB 300cd/m2 NTSC TFT LCD Panel LM270WF7-SLA1 FHD 81PPI

Brand Name : LG DISPLAY

Model Number : LM270WF7-SLA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM270WF7-SLA1

BRAND : LG DISPLAY

SIZE : 27.0INCH

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 81PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM270WF7-SLA1 Application Details

Basic Info : Panel Brand Panel Model LM270WF7-SLA1
Diagonal Size 27.0" Application






Panel Type a-Si TFT-LCD , LCM Model Alias LM270WF7 (SL)(A1)
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C

LG Display LM270WF7-SLA1 Mechanical Details

Pixel Features : Pixel Format 1920(RGB)×1080 [FHD] Dot Pitch 0.1038×0.3114 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.3114×0.3114 mm (H×V) [81PPI]
Mechanical Size : Display Area 597.888×336.312 mm (H×V) Bezel Area 601.5×339.95 mm (H×V)
Outline Dim. 611.5×355.8 mm (H×V) Outline Depth 9.5/13.2 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style Normal bezel
Holes & Brackets : without mounting hole
Other Features : Weight 2.85/3.0Kgs (Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

LG Display LM270WF7-SLA1 Optical Details

Basic Information : Brightness 300 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode IPS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 14 (Typ.)(G to G) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 95% coverage
Adobe RGB 74% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM270WF7-SLA1 Backlight Details

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 30K(Min.) (Hours)
Replacement - Amount 17S4P Position Edge light type (Bottom side)
Lamp Electrical : Voltage Input 51.0±3.4V Current Input 75/80mA (Typ./Max.)
Consumption 15.3/16.4W (Typ./Max.)
Interface Features : Type Connector Position Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST BM06B-SHJS-TB(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC

LG Display LM270WF7-SLA1 Interface Details

Signal Systerm : LVDS (2 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 5.0V (Typ.) Current Input 470/585mA (Typ./Max.)
Consumption 2.35/2.92W (Typ./Max.)
Interface Features : Type Connector Position
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
UJU IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-170C

LG Display LM270WF7-SLA1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box - 355×700×430 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

27.0in RGB 300cd/m2 NTSC TFT LCD Panel LM270WF7-SLA1 FHD 81PPI


Product Tags:

300cd/m2 NTSC TFT LCD Panel



27.0in RGB TFT LCD Panel



FHD 81PPI Square Tft Screen


Cheap 27.0in RGB 300cd/m2 NTSC TFT LCD Panel LM270WF7-SLA1 FHD 81PPI for sale

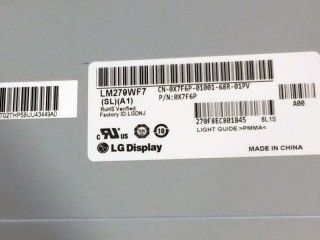

27.0in RGB 300cd/m2 NTSC TFT LCD Panel LM270WF7-SLA1 FHD 81PPI Images
